High-Pressure Diaphragm Plate and Frame Filter Press

The high-pressure diaphragm plate and frame filter press is a batch-type pressure filtration equipment used for solid-liquid separation of various suspensions. It relies on a clamping device to compress the filter plates

Category:

Screening, Dewatering & Concentration Equipment

cnshanlu@163.com

400-128-1186

Get a quote
related products
  • Product details

  • The high-pressure membrane plate-and-frame filter press is a batch-type pressure filtration device used for solid-liquid separation of various suspensions. It relies on a clamping device to press the filter plates together, then pumps the suspension into the filter chambers, achieving separation of solid particles and liquid material through the filter cloth. The machine features a simple structure, excellent separation performance, ease of use, and wide applicability, and is widely used in fields such as mining, coal washing, inorganic salts, alcohol, petroleum, chemicals, dyes, metallurgy, pharmaceuticals, food, papermaking, and wastewater treatment.


    Advantages and Features

    1. Filtration area up to 2000m²;

    2. Filter plate materials include cast iron, rubber, reinforced polypropylene (plastic), glass fiber polypropylene, etc.;

    3. Feed liquid flow modes include open flow, closed flow, washable, non-washable, center feed, corner feed with top-center feed, and various other forms;

    4. Filter plate clamping methods include manual screw clamping, electric mechanical clamping, and hydraulic cylinder clamping;

    5. Customized models are supported according to special requirements of customer working conditions.

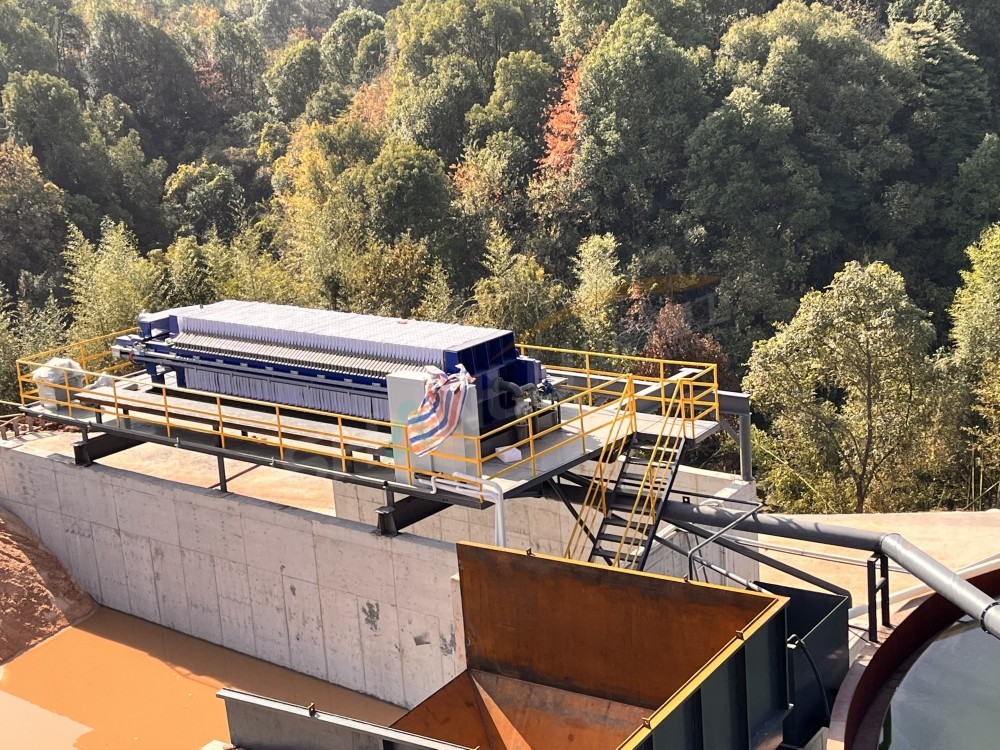

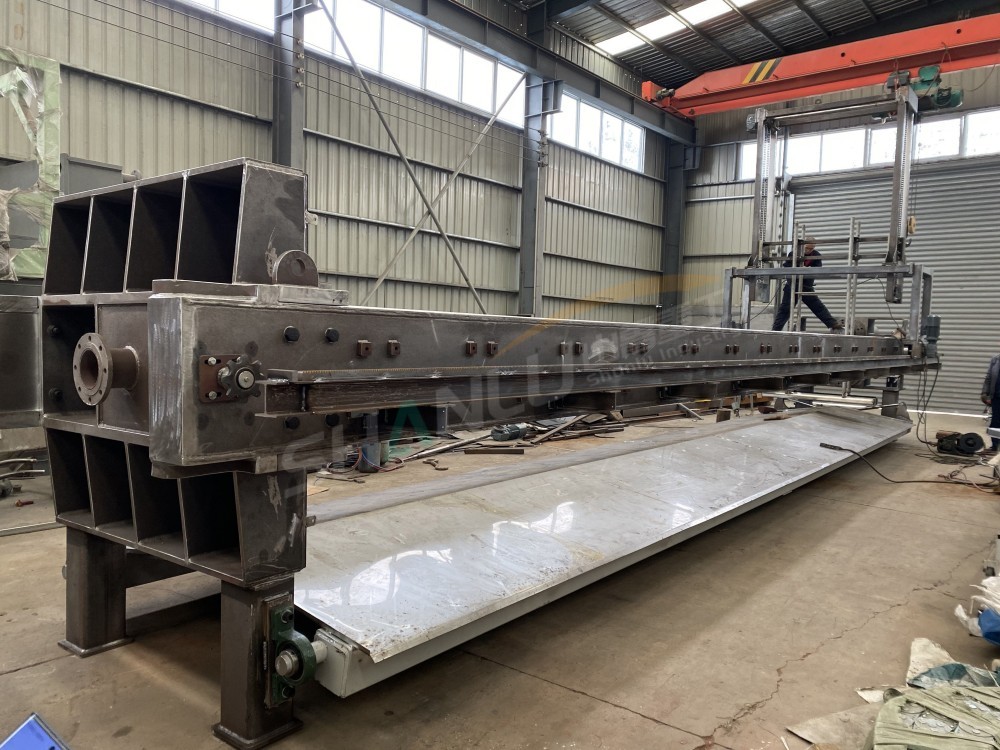

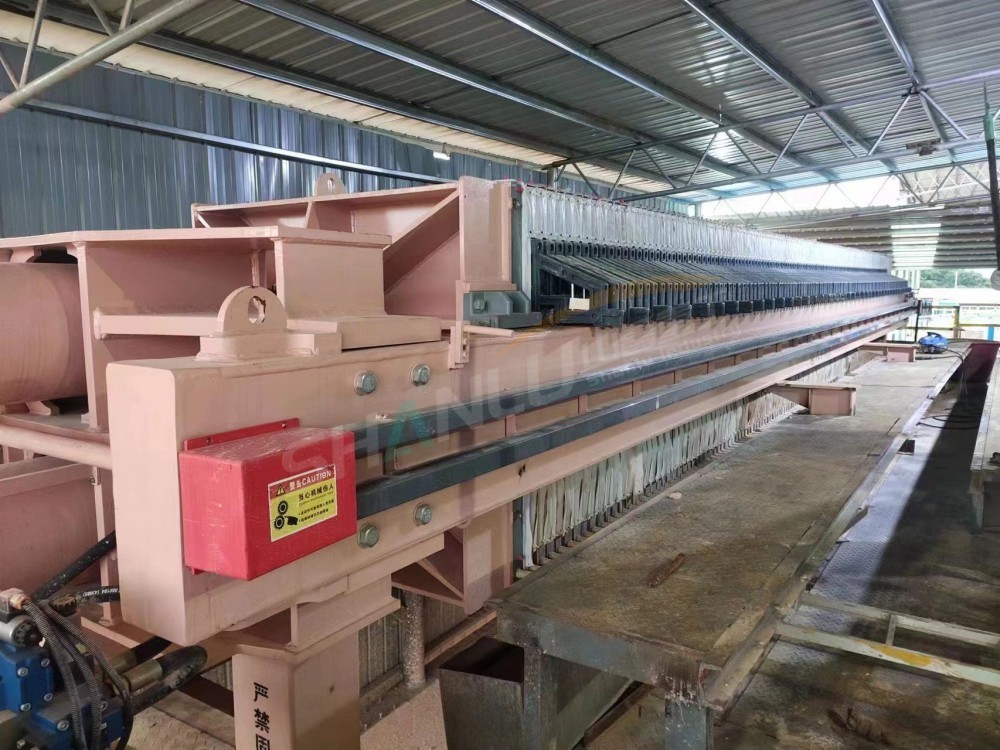

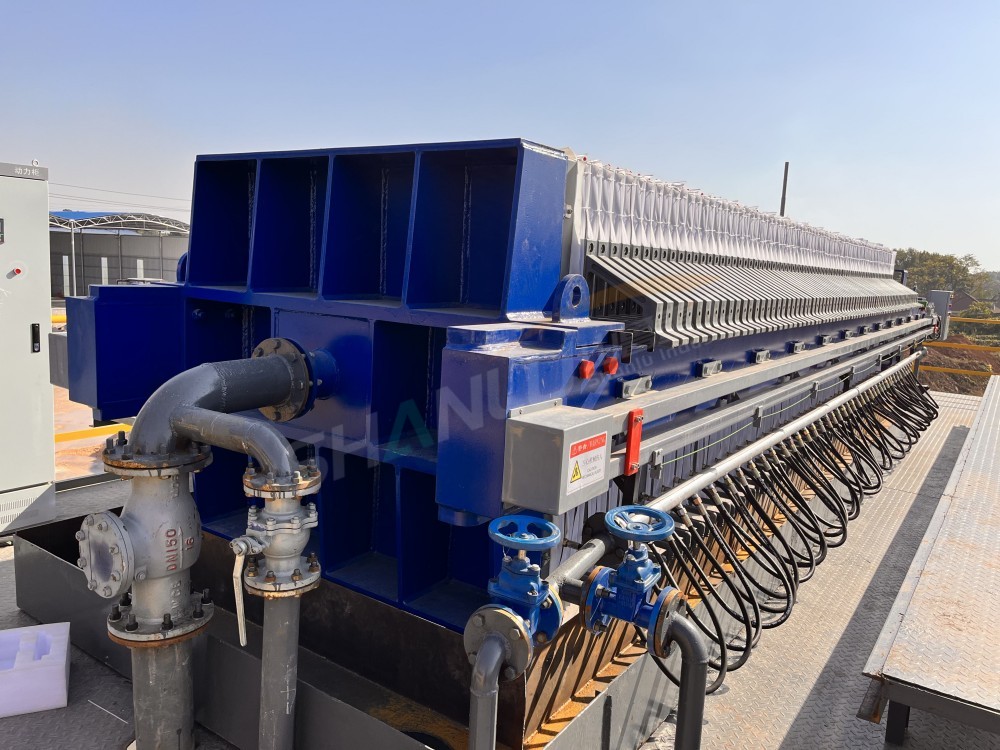

    Equipment Display and Customer Cases






Previous:

Square Swing Screen

Next:

Ceramic Filter

Product Inquiry

Please leave your message and we will contact you promptly upon receipt. Thank you for your support!

High-Pressure Diaphragm Plate and Frame Filter Press
  • What kind of product do you need?
  • What's your budget?
  • What other information do you need to know?

FAQ

Q

What information is needed in advance to set up a quartz sand production line?

A

First, you need to provide the test and assay report of the raw quartz ore to clarify the content of iron, feldspar, and mica impurities in the ore; in addition, confirm the planned capacity in t/h, the target finished product specifications and applications (plate sand / fracturing sand / photovoltaic sand), the size of the plant site, and local environmental protection policy requirements. Based on the above information, we will then carry out targeted process planning and equipment selection.

Q

Is the wet process or the dry process better for quartz sand?

A

If the raw ore contains a lot of mud and clay impurities, the **wet process** is preferred, as scrubbing and desliming give better iron removal; if the raw ore has little mud, is mainly for powder production, and the site lacks water, the dry process is suitable. High-end high-purity photovoltaic sand mostly uses a complete purification process based on the wet method, but the specific choice should still be based on the raw ore assay results.
