Ceramic Filter
- Product details
-
The disc ceramic filter is a highly efficient, energy-saving solid-liquid separation device. Its core uses porous ceramic discs as the filtration medium, utilizing vacuum negative pressure and capillary effect to achieve fine dewatering.
Working Principle
Slurry Suction Zone: During operation, the filter plate immersed in the slurry combines capillary action with vacuum pressure, adsorbing a layer of filter cake on its surface. The filtrate passes through the filter plate into the distribution valve and then to the discharge tank.
Drying Zone: The filter cake continues to dewater under high vacuum force.
Discharge Zone: When vacuum is removed, the scraper automatically discharges the cake.
Backwashing: Industrial water or filtrate enters the ceramic plate through the distribution valve and is cleaned from the inside out, clearing clogged micropores. After a period of use, the ceramic plate is cleaned with ultrasonic assistance combined with low-concentration acid to maintain efficient performance.

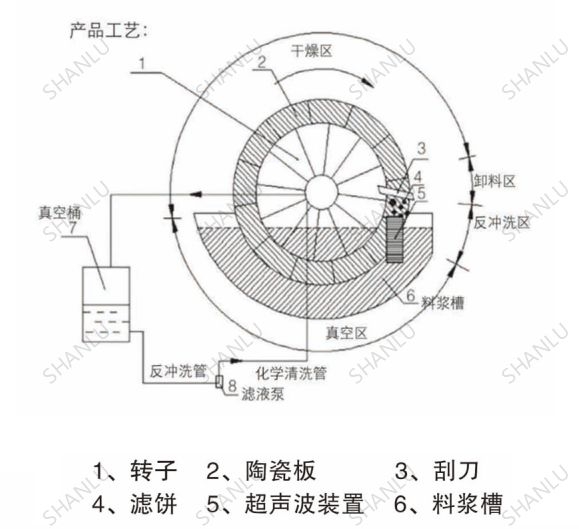

Product Structure Diagram

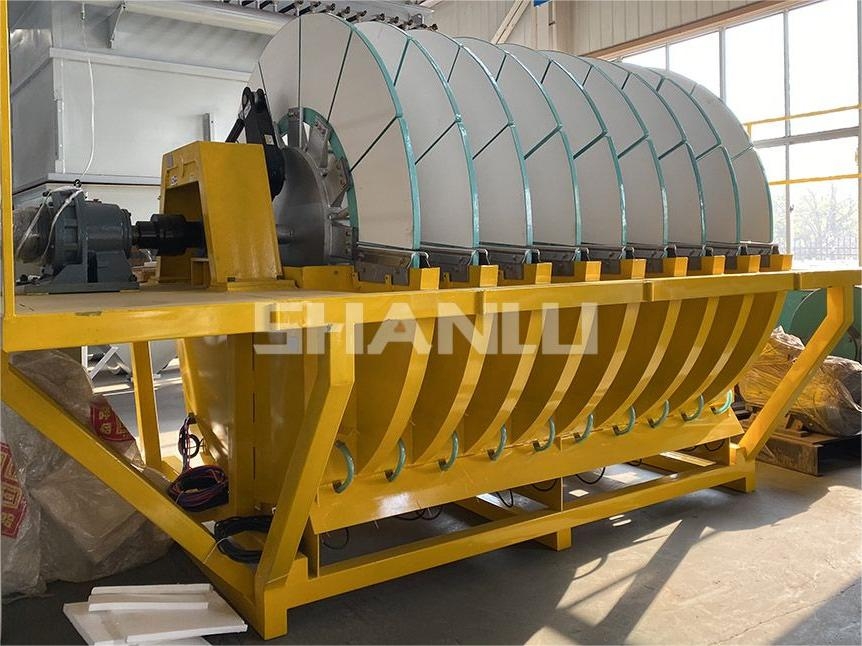

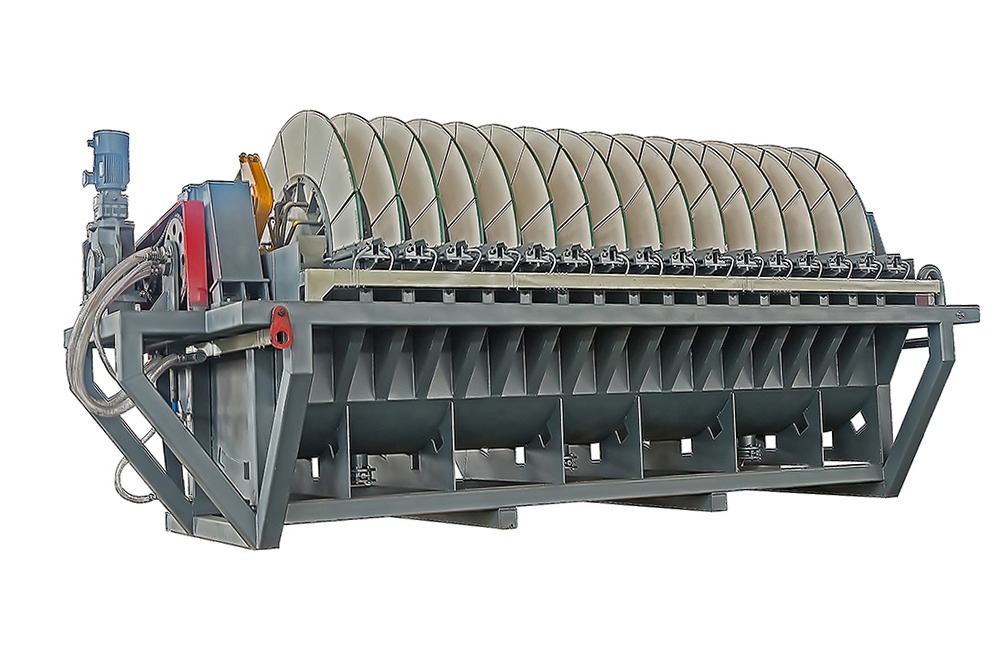

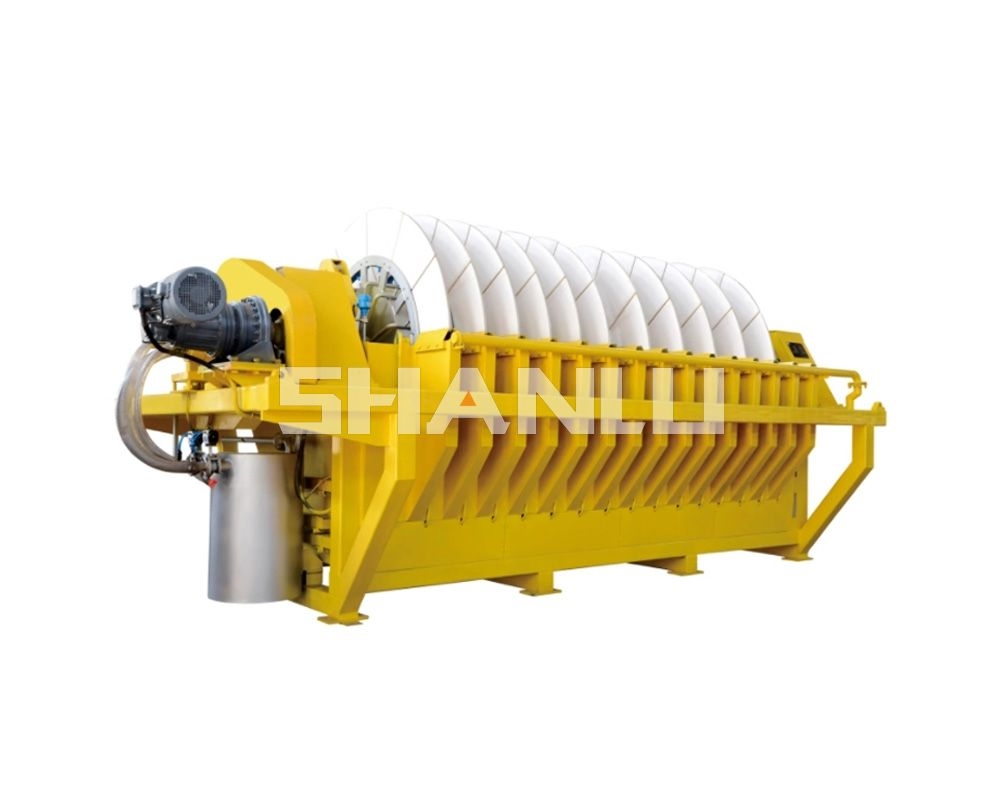

Equipment Display
